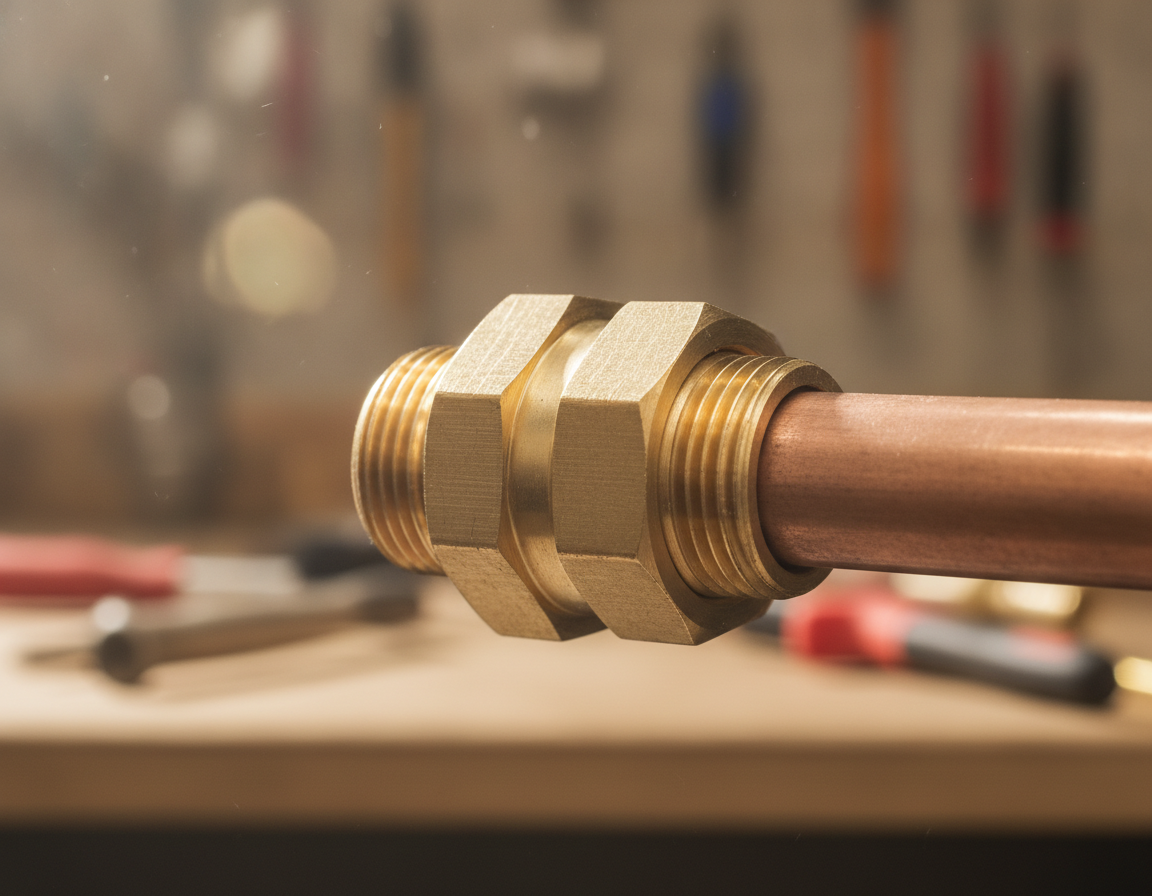

For copper pipe connections, compression fittings offer a safe way to join tubing without using solder or working with an open flame. A Copper Compression Union employs a nut, ferrule, and body to form a secure seal when the nut is tightened with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting common picks among both professional plumbers and DIY enthusiasts.
3 4 Union Brass
These unions are useful, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often stocks 3/4 Compression Fitting Copper and 3 4 Compression Fittings in styles such as brass, copper, and stainless steel. The ferrule reshapes between the tapered nut and body, effectively sealing tubing such as annealed copper or compatible thermoplastics.
Important Takeaways
- Copper Compression Union connects copper pipe without soldering.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are popular sizes.
- 3/4 Compression Fitting Copper and 3 4 Compression Fittings are commonly stocked through Installation Parts Supply.
- Brass bodies and ferrules deliver strength and corrosion resistance.
- Wrench-tightening the nut compresses the ferrule to form a leak-tight seal.
Copper Compression Union Design And Components Explained
A Copper Compression Union is a multi-part fitting that joins tubing without solder. These unions are specified in plumbing, HVAC, refrigeration, gas distribution, and instrumentation systems. This is because it provides a tight, compressive seal. The 3 4 Copper Compression Union is frequently used in home and light-commercial installations.
What A Copper Compression Union Is And Where It Is Used
A compression union joins two pipes by compressing a ring around the tube as the nut tightens. It is chosen for quick repairs, service loops, and tight spaces where an open flame is impractical. A 3/4 Copper Compression Fitting is effective for mains, branch lines, and appliance feeds where brazing is not desired.
Parts Of A Compression Union: Body, Ferrule Olive, And Nut
The union body forms the threaded section that receives the nut. The ferrule, often called an olive, reshapes and seals against the pipe and body when the nut is drawn up. The nut threads onto the body and delivers the compressive force. Correct ferrule seating is essential for a leak-free joint and dependable field serviceability.
Materials For Copper Compression Unions: Copper, Brass, Stainless Steel, And Plastics
Brass unions are ductile and corrosion-resistant, which makes them a reliable match for copper pipe in water and gas systems. Stainless steel delivers additional strength for high-pressure, high-temperature, or demanding service. Copper-to-copper unions maintain similar thermal expansion and fit common tubing sizes. Plastic ferrules and fittings, such as acetal or nylon, are used in low-pressure domestic systems where nonmetallic connections or chemical resistance are useful.
Why Matching Copper Unions Lower Galvanic Corrosion Risk
Matching metals limit galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union, or a brass body paired with copper pipe, limits active corrosion at the connection. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Why Use Compression Fittings On Copper Pipes
For copper pipe work, compression fittings offer a fast, safe alternative to soldered joints. They avoid the need for an open flame, lowering fire risks near insulation, drywall, or aging structures. A Compression Fitting 3/4 provides a reliable seal without heat, making it ideal for retrofit jobs and confined locations.
Installation is simple and consistent across most brands. First slide the nut onto the tube, then add the ferrule. Next, insert the tube fully and hand-tighten before a final wrench turn. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is a important strength of compression unions. Many tradespeople use 3 4 Compression Fittings because assemblies can be loosened or repositioned without cutting pipe. Although ferrules often need replacement after disassembly, the overall joint may remain serviceable, saving time during repairs, changes, or modifications.
Compression fittings are appropriate for a wide range of systems beyond household plumbing. They appear in gas distribution, HVAC refrigeration lines, and instrumentation systems where leak integrity and maintenance access matter. For projects requiring a compact, heat-free connection, a Compression Fitting 3/4 or 3/4 Compression Fitting delivers a practical solution.
| Characteristic | Compression Joint | Soldered Connection |
|---|---|---|
| Heat needed | No | Heat required |
| Assembly time | Fast | More time required |
| Future disassembly | Often serviceable | Not serviceable without cutting |
| Confined-space suitability | Very good | Often difficult |
| Typical uses | Plumbing, gas, HVAC, instrumentation | Domestic water, long-term sealed joints |
Choosing The Right Size And Material For Reliable Connections
A reliable plumbing joint starts with the correct size and material selection. Before making a purchase, check the pipe’s outside diameter and the fitting’s designation. Misinterpretation of terms like 3/4 Compression Fitting can lead to leaks and costly repairs.
When selecting fittings, it is essential to understand the difference between nominal size and outside diameter OD. Search for SKU labels such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. Correct sizing supports proper ferrule seating on the copper tube.
Common SKU keywords to search for
Retail pages and manufacturer catalogs may list the same fitting under several names. Choose listings with clear labeling and standard references. Common terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Make sure the product description aligns with your pipe OD or nominal sizing requirement.
Choosing fitting materials
Brass is often specified for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or 3 4 Union Brass is well matched for many residential and light-commercial installations.
Copper unions are useful when matching metals, controlling thermal expansion, and reducing galvanic activity. A 3/4 Compression Fitting Copper creates a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is often recommended where higher pressure, heat, or aggressive chemicals are involved. It delivers greater strength and chemical resistance compared to brass and copper.
When plastic fittings are acceptable
Acetal or nylon compression fittings are acceptable for low-pressure domestic water lines and where non-conductivity is necessary. However, they have restrictions, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Comparing common coupling types
| Fitting Material | Usual Application | Relative Strength | Selection Notes |
|---|---|---|---|
| 3/4 Union Brass in brass | Potable water, gas, general plumbing | Good | Affordable and compatible with copper tubing |
| 3/4 Compression Fitting Copper | Copper systems and refrigeration lines | Reliable for standard service | Reduces galvanic risk and matches copper tube |
| Stainless steel fittings | Industrial or aggressive-fluid applications | Strong | Useful where strength and chemical resistance matter |
| Plastic, including acetal or nylon | Domestic low-pressure applications | Low to Moderate | Nonmetallic but limited by temperature and chemistry |
Helpful sizing tip
When encountering product names like 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm the listing’s reference to OD or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
Best Installation Practices For A Leak-Free Union
Start with copper tubing that is straight. Use a pipe cutter to make a clean cut. Remove burrs with a deburring tool, reamer, or fine sandpaper. A smooth, square end is important to prevent ferrule damage and ensure a reliable seal when installing 3/4 Compression Fittings.
Assemble components in the correct order. Place the compression nut on the pipe with threads facing outward, followed by the ferrule. Push the pipe fully into the union body until it bottoms out. This step helps prevent gaps that can cause leaks when using a 3 4 Brass Compression Coupling or 3/4 Compression Fitting Copper.
Hand-tighten the nut first to align parts. Then use two wrenches, with one holding the fitting body steady and the other turning the nut. Follow the manufacturer’s recommended number of wrench turns after finger-tight. Over-tightening can deform the ferrule or crush the copper tube, which shortens the life of a 3/4 Copper Compression Fitting.
Avoid reusing ferrules. Always fit a new ferrule and nut for each joint. Avoid installing compression joints in areas exposed to constant vibration or repeated movement. These conditions can loosen fittings such as 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Check the pressure and temperature rating for the fitting you choose. Before installation, review the product datasheet or packaging. After assembly, slowly restore pressure and inspect for leaks. If slight weeping appears, tighten the nut in small increments. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Maintenance, Replacement, And Troubleshooting For Compression Unions
Start by turning off the water supply and relieving system pressure. Use two wrenches, one to hold the fitting body steady and the other to turn the compression nut counter-clockwise. Apply penetrating oil to a seized nut and let it soak before attempting removal.
How to remove an existing compression union safely
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old or corroded, loosen it slowly to avoid sudden leaks or pipe damage.
When to replace the ferrule and nut versus the entire union
Replace only the ferrule and nut when the fitting body is still sound but the sleeve shows wear, distortion, or scoring. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Common failure signs: weeping, corrosion, or ferrule damage
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration may gradually loosen compression unions and cause slow leaks over time.
Tips to cut out a stuck ferrule without damaging the copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. If available, use a ferrule puller for cleaner removal. If the tube shows nicks or flattening, recut the end square, deburr, and file smooth before reinstalling a new ferrule and nut.
Longevity comparison: compression unions and soldered joints
Soldered joints generally deliver a more permanent seal and often last longer under static conditions. Compression unions offer ease of service and eliminate the need for flame, making them ideal for repairs and tight spaces. In systems exposed to vibration or long-term mechanical stress, soldered joints tend to outperform compression fittings.
| Fitting Type | Ease Of Service | Typical Lifespan | Ideal Application |
|---|---|---|---|
| 3 4 Compression Union in brass | Serviceable, though ferrules may need replacement after repeated cycles | 5–15 years depending on conditions | Service work, confined spaces, and flame-free jobs |
| 3/4 Union Brass | Moderately serviceable when nut and ferrule are replaced | 5–15 years | Accessible general plumbing repairs |
| 3/4 compression connector | Limited reuse possible, but ferrules should be replaced after cycles | Depends on material, with brass often lasting 7–20 years | Fast no-solder repairs and installations |
| 3/4 Inch Compression Fitting | Easy to install and remove; watch for damage when reusing ferrules | Varies by conditions and may shorten under movement | Home plumbing and retrofit repairs |
| Soldered comparison for 3/4 Compression Fittings | Not serviceable once soldered; highly durable | Often 20+ years with proper installation | Long-term fixed runs and vibration-prone systems |
When sourcing spares, check manufacturers such as Mueller, Nibco, or Watts for compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting parts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Conclusion
Copper compression unions deliver a practical solution for joining copper tubing without the need for soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. This makes them useful for situations where heat is not feasible or where serviceability is a priority.
When choosing materials, match the fitting to the application: brass or copper for potable systems and lower galvanic risk, stainless steel for harsh or high-stress service, and approved plastics where they are permitted. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is simple: check for signs of weepage or corrosion, replace ferrules as needed, and avoid over-tightening to prolong the union’s life. For specific parts like a 3 4 Copper Compression Union or a 3 4 Union Brass, verify stock and specifications with Installation Parts Supply. This helps ensure compatibility, proper sizing, and correct installation guidance.
