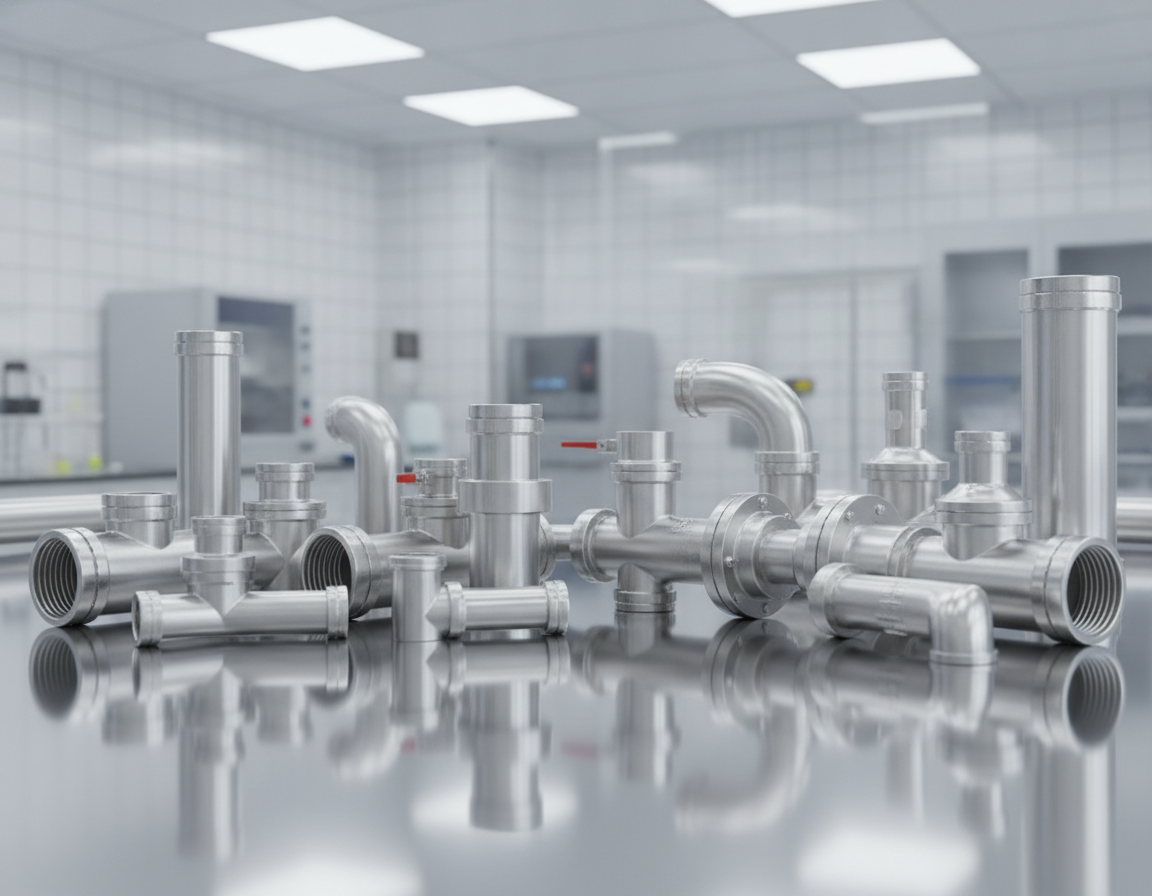

Across many industries, stainless steel sanitary pipe fittings are essential for keeping process systems clean. Components such as ferrules, clamps, sanitary valves, and fittings are specified to maintain clean fluid paths. They minimize contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Hose Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are essential selection factors. They influence the ease with which a system can be validated and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands such as CSI and distributors like Installation Parts Supply offer useful purchasing information. They provide catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Material grade and surface finish influence cleanability and corrosion resistance.
- Hygienic Fittings compatibility lowers downtime during maintenance and upgrades.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Proper selection of Sanitary Valves And Fittings helps maintain regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems require components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features are essential for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design helps prevent bacterial growth and helps maintain product purity during transfer and processing. Their design facilitates quick cleaning and minimizes cross-contamination risks.
Industries That Use Hygienic Fittings
Food processors depend on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants specify fittings that meet strict regulatory requirements.
Biotech facilities need precise sanitary connections for fermentation, cell culture, and bioprocessing. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L resist chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help reduce bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces make easier the assembly and maintenance of robust hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
Stainless steel sanitary pipe fittings are critical in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This section covers common stainless grades, component families, and surface finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel is recognized for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L provides higher resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components supports corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L at the design stage streamlines the procurement of SS Sanitary Fittings and associated parts.
Common Sanitary Fitting Types And Their Roles
Ferrules function as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, enable quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings join flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing with compatible SS Sanitary Fittings helps lower leaks, downtime, and maintenance problems.
Why Surface Finish Matters For Cleanability
Surface roughness directly affects how residues cling to metal surfaces. A 32RA internal finish is a common spec that matches cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps minimize microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes simpler.
| Component | Usual Material | Standard Finish | Typical Application |
|---|---|---|---|
| Ferrules butt weld / weld-in | 304 / 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece clamps Tri-Clamp | 316L preferred | 32RA finish or electropolished surface | Quick-release hygienic joints |
| Weld fittings and couplings | 304 or 316L stainless | 32RA, electropolished optional | Permanent joins, elbows, tees |
| Hygienic hose fittings | 316L common | Electropolished product-contact surfaces | Flexible process lines and transfers |
| Sanitary Valves And Fittings | 316L for wetted parts | Polished internals | Cleanable flow control in process lines |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings align with strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A define ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. These standards make easier the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs cover clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should include OAL, ID/OD finish, and compatible gasket material. This supports the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps use a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules deliver superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog supports quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The right joint type is essential for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own pros and cons regarding assembly speed, cleanability, and leak risk.
Clamp connections are valued for their quick assembly and ease of disassembly for cleaning. Welded joints, on the other hand, offer the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Style | Ideal Use | Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Lines requiring fast access for cleaning | High; gasketed seal easy to clean | Strong interchangeability when standards, faces, and sizes align |
| Butt-Weld / Socket-Weld | Permanent runs needing smooth bore | Very high after proper polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded fitting connection | Utility lines and non-product-contact service | Moderate; threads can trap residue | Less common in product-contact lines; verify material and surface finish |
| Sanitary hose and ferrule connection | Flexible runs and transfer lines | Strong if fitted with matching ferrules and couplings | Needs the correct ferrule profile and Sanitary Coupling to prevent leaks |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Choosing the right sanitary components depends on a few focused steps. This guide guides you match size, material, and finish to your process needs. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a critical part of sanitary fitting specification. For routine food and beverage lines, 304 meets strength and cleanability needs. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice influence cleanability and seal life. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings provide conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is essential. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Best-practice assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting frequent sanitary fitting issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and create leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches may be polished out and electropolished to restore the required Ra level. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Task | Timing | Key Action | Important Notes |
|---|---|---|---|
| Sanitary clamp torque verification | After assembly, then monthly | Check with calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket condition check | Every 3–12 months or on failure | Look for damage, compression set, or extrusion | Use matching material, profile, and durometer |
| Surface finish check | Every quarter or after welding | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and during annual review | Inspect for undercut, porosity, profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| Cleaning and sterilization validation | Each process cycle | Track time, temperature, chemistry, and concentration | Document results for regulatory traceability |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
Starting with a detailed catalogue review is important. Look for a Sanitary Fittings Catalog that shows material grade, finish, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, check clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog helps make matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to gauge market pricing and common stocking sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Size | Material Grade | Listed Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin sanitary clamp | 0.25″–0.75″ | 304 stainless | Standard finish | 3.91 USD |
| Two-piece single-pin clamp | 1 inch | Type 304 stainless steel | Standard catalog finish | 4.91 USD |
| Two-piece single-pin sanitary clamp | 2 inch | 304 stainless | Standard finish | $5.99 |
| Single-pin two-piece clamp | Two-and-a-half-inch size | Type 304 stainless steel | Standard | 6.93 USD |
| Two-piece single-pin sanitary clamp | 3 inch | 304 | Standard catalog finish | $7.54 |
| Two-piece single-pin clamp | 4″ | 304 | Standard finish | Approx. $9.16 |
| Ferrule TC | 2″ size, 1.125″ overall length | 316L | 32RA ID/OD | 4.24 USD |
| Tri-Clamp ferrule | 2″ — 1.125″ OAL | 304 | 32RA ID and OD | Approx. $4.06 |
| Tri-Clamp ferrule | Three-inch size | 316L stainless | 32RA internal and external finish | 6.15 USD |
| Double-bolt high-pressure clamp | One-and-a-half-inch size | 316 | Polished | 12.93 USD |
| Double-bolt high-pressure clamp | 2 inch | 316 stainless | Polished | Approx. $14.62 |
| Double-bolt high-pressure clamp | Three-inch size | 316 | Polished finish | Approx. $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to verify availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, choose catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. These choices can significantly reduce contamination risk. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is vital for tight Sanitary Connections and easy interchangeability.
When selecting fittings, consider the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines streamlines system design and upkeep. Clear specifications, consistent materials, and trusted sources minimize downtime. This supports product quality in hygienic processing environments.
